Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNSUN
Model Number:
SS-S100WP
Material:
Monocrystalline Silicon
Size:
1060x530x2.8
Number of Cells:
32
Max. Power:
100W
Vmp:
17.6V
Imp:
5.83A
Voc:
21.1V
Isc:
6.11A
Cell Efficiency:
22%
Max System Votltage:
1000V DC(IEC)/600V DC(UL)
Max Series Fuse Rating:
20A
Power Tolerance:
+/-5%
Weight:
1.8kg
Connector:
MC4
Packaging Details
Paper box,Wooden carton,Pallet.
Delivery Time
7-15 days after confirm order.

Sunpower cell China high efficiency 100w flexible solar panel



1).Description
    Water-proof,perfect to use on yacht,car,boat,snow mobile,golf-cart….etc
    Light weight for easy carrying
    High efficiency crystalline solar cell

2).Semi Flexible
     Bending angle up to 30 degrees
    Water-proof,perfact to use on yacht,car,boat,snow mobile,golf-cart….etc
    Light weight for easy carrying

3).Standard  Test Condition
    Est each module at lOOOW/m2,AMl.5,25’C before packing





Model

SS-S100WP

Maximum Power at STC (Pmax)

100 W

Optimum Operating Voltage (Vmp)

17.60 V

Optimum Operating Current (Imp)

5.83A

Open – Circuit Voltage (Voc)

21.10V

Short – Circuit Current (Isc)

6.11A

Cell Efficiency

22.0%

Operating Module Temperature

20 °C to +65 °C

Maximum System Voltage

1000 V DC (IEC) / 600 V DC (UL)

Maximum Series Fuse Rating

20 A

Power Tolerance

±5 %

Solar Cell

Sunpower

No. of Cells

32 (4 × 8)

Dimensions

1060 × 530× 2.8mm

Weight

1.8 kgs

Front Glass

PET

Frame

N/A

Junction Box

IP67 rated

Output Cables

TUV (2Pfg1169:2007), UL 4703, UL 44

Optional

4.0 mm2,symmetical lengths(-)1000mm and (+)1000mm

Connectors

SOLAR MC4

 integrated twist locking connectors



Applications

What applications the flexible solar panels can be used for?

Boats;

Golf cars;

Camping:

Caravan.

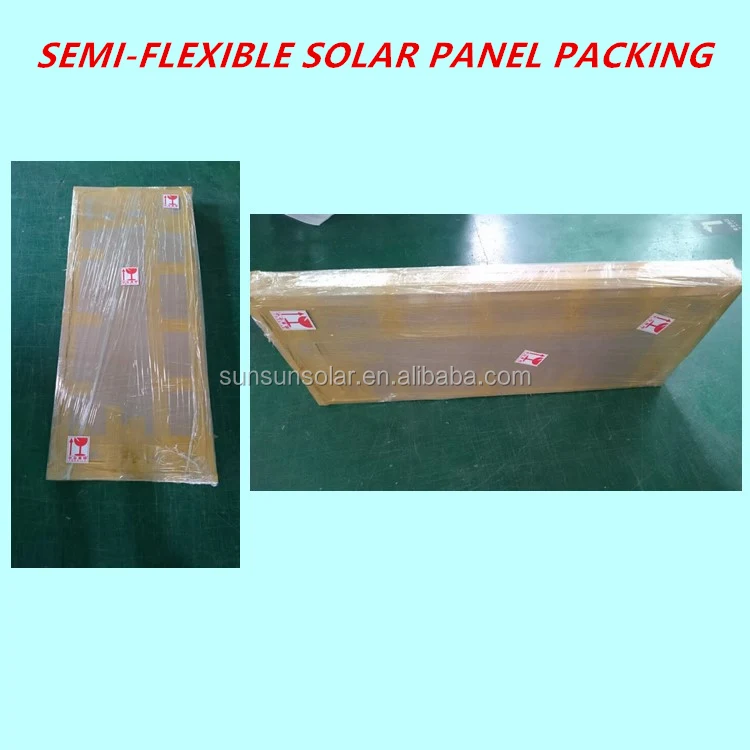

Packaging

How the flexible solar panels packing?

Paper box;

Wooden carton;

Pallet.



Our Services

What sevice can we provide?

OEM available;

System configuration service;

Technical support;

Installation guidiance.

Company Information

SUNSUN SOLARENERGY is what a company?

SUNSUN has its own technical team,including a number of experienced sotrware engineers,hardware engineers,they can customize various specs products and system for clients.

FAQ

1. Q: Do you have your own factory?

   A: Yes, we have. Our factory located in shenzhen city, guangdong province.

2. Q: How can I visit your factory?
    A: Before you visit,please contact us.We will show you the route or arrange a car to pick you up.
3. Q: Do you provide free sample?
    A: Commenly we provide paid sample.

4. Q: Could you print our company LOGO on the nameplate and package?

   A: Yes, we accept it.And need an Authorization Letter from you.

5. Q: Do you accept custom design on size?

   A: Yes, if the size is reasonable.

6. Q: How do you overcome the anti-dumping and countervailing duties?

   A: We can use original Taiwan solar cells, and provide Certificate of Origin of Taiwan.

7. Q: How can I be your agent in my country?

   A: Please leave feedback. It’s better for us to talk about details by email.

8. Q: Do you have solar project engineer who can guide me to install system?

   A: Yes, we have a professional engineer team. They can teach you how to install a solar system.
